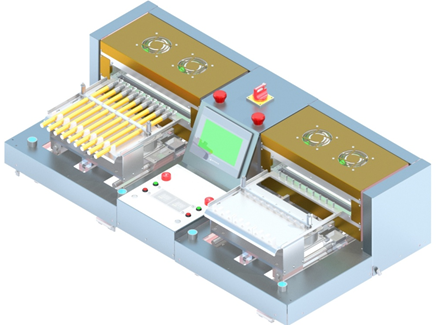

Wire End Heat Shrinkage Machine Location:Home > Product Center


The product applies to the heating and shrinking of annular terminal, end connector and tubular terminal. The wire harness move. But the heating module does not move. Both sides of the machine can work in turn with 5-10 pieces of harness in each side. Th

  • Parameter
  • Video

Product Specifications:

Dimension           1200*600*340mm

Input Voltage         380V AC

Thermal Temperature   Max 600℃ centigrade

Maximum Power      4000  W

Section Area of Harness Max 120 square mm

Width of Heating panel:   Max 300mm

Outer Diameter of Tube  Max 35mm

Product Features:

       The machine makes heating-shrinking process more efficient and more safe. The tube is heated more compact and more even.

High Compatible Degree of Harness

       Adjustment of the height of heating module can help the machine heat harness which section area is between 2.5-120 square mm. The maximum width of the tube is 35mm.

Good Thermal Compensation

      With high power, the machine has  good thermal compensation quickly.

Good Quality of Heating and Shrinking:Multi-Protection:

      After the heating and shrinking process is completed, the glue is evenly distributed, the tube is cooled enough and the harnesses do not adhere one another.


     There are several ways to protect the heating module. Especially, there are protections when the machine crashes or is powered off.

Communication And Storage:

    The machine supports 485, internet, and USB communication and can communicate with MES system to realize intelligent production. The temperature data can be stored and be output in 14 days.


4Adjustable parameters: heated temperature; shrinking time, etc..

4Both sides of the working stations of the machine can work independently.

4The distance among the thermal infrared modules can be adjusted to fit different diameters of the harnesses.

4There is administrator function in the parameter setting panel.

4Easy operation ensures high production efficiency.

4The positioning fixture of the wires needs to be customized.
