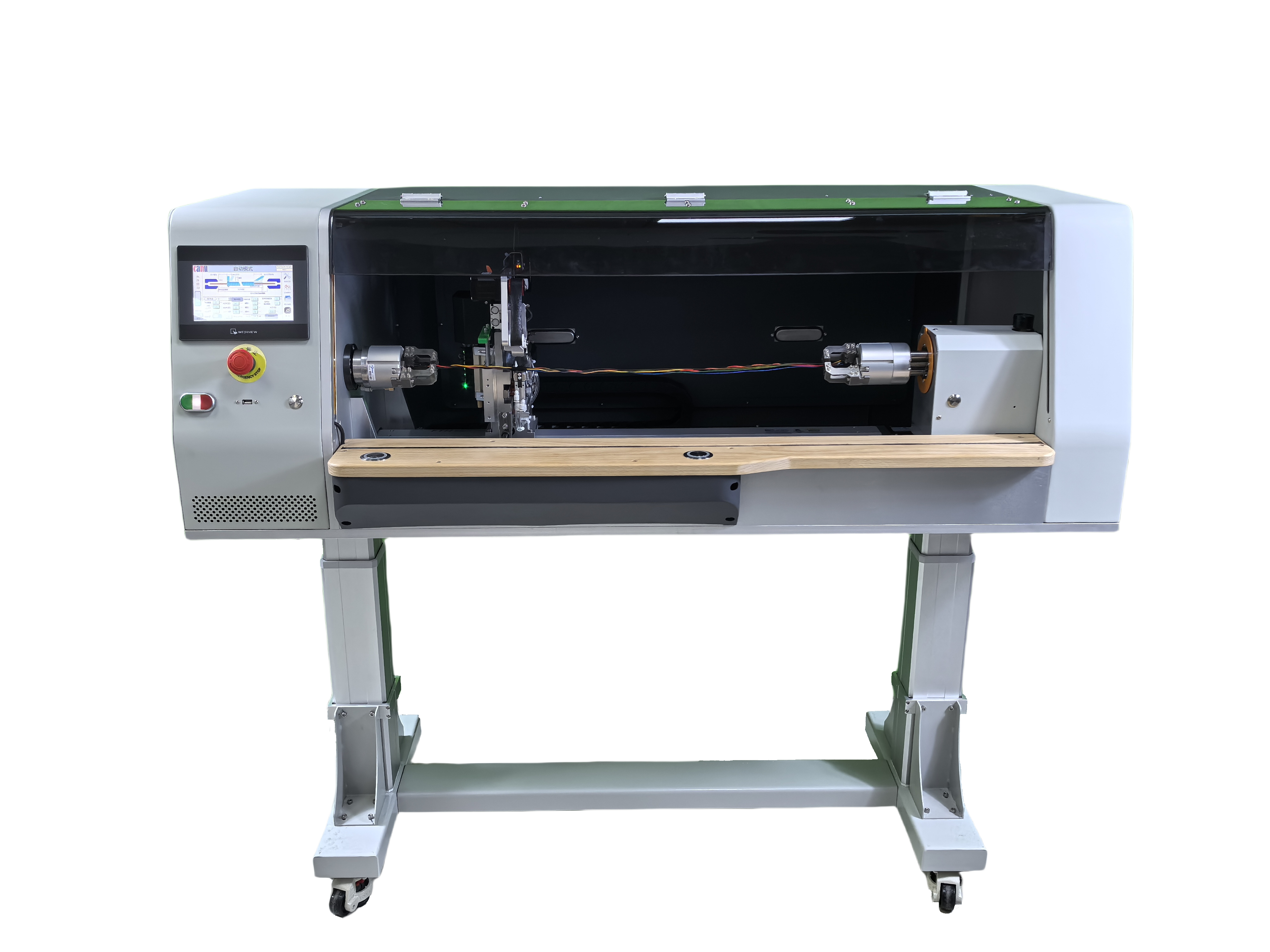

SR-Taper-I-A
Automatic taping on simple wire harness without branches can be realized. Through the parameter setting in the display panel, Operator can set the winding length of the tape, the overlap rate of the tape, etc, and realize special taping process . The entire tape winding and cutting process is automatic, and the operator only needs to upload and download the wiring.
Product Specifications：
Dimension | 1500*700*510mm |
Power Supply | 110V/220V（AC） |
OD Of Tape | ≤180mm |
Tape Mandrel Diameter： | 32-76mm |
Taping Length | ≤600mm |
OD of Wire | ≤10mm |
Winding Speed | ≤800 RPM |
Tape Width | 9/19mm width, |
Tape Materials | PVC, Cloth, fleece |
Characteristics：
4Reliable cutting, especially for cloth tape, fleece tape
4The clamp can be quickly changed , only four screws need to be removed
4Special taping effects can be achieved
Product Features：
Taping near connector：
The special design ensures that the tape can be wrapped to the left 10mm and the right 30mm of the connector.
The harness not twisted：
The special design ensures that the wire harness is not twisted during taping.
Parameter setting:
The turns of winding, the taping length , the winding speed, the horizontal walking track and the effect of the taping can all be set in the display panel.
Fully automatic:
Automatic winding, automatic head positioning, automatic cutting, Operator only need to upload and download the line.
