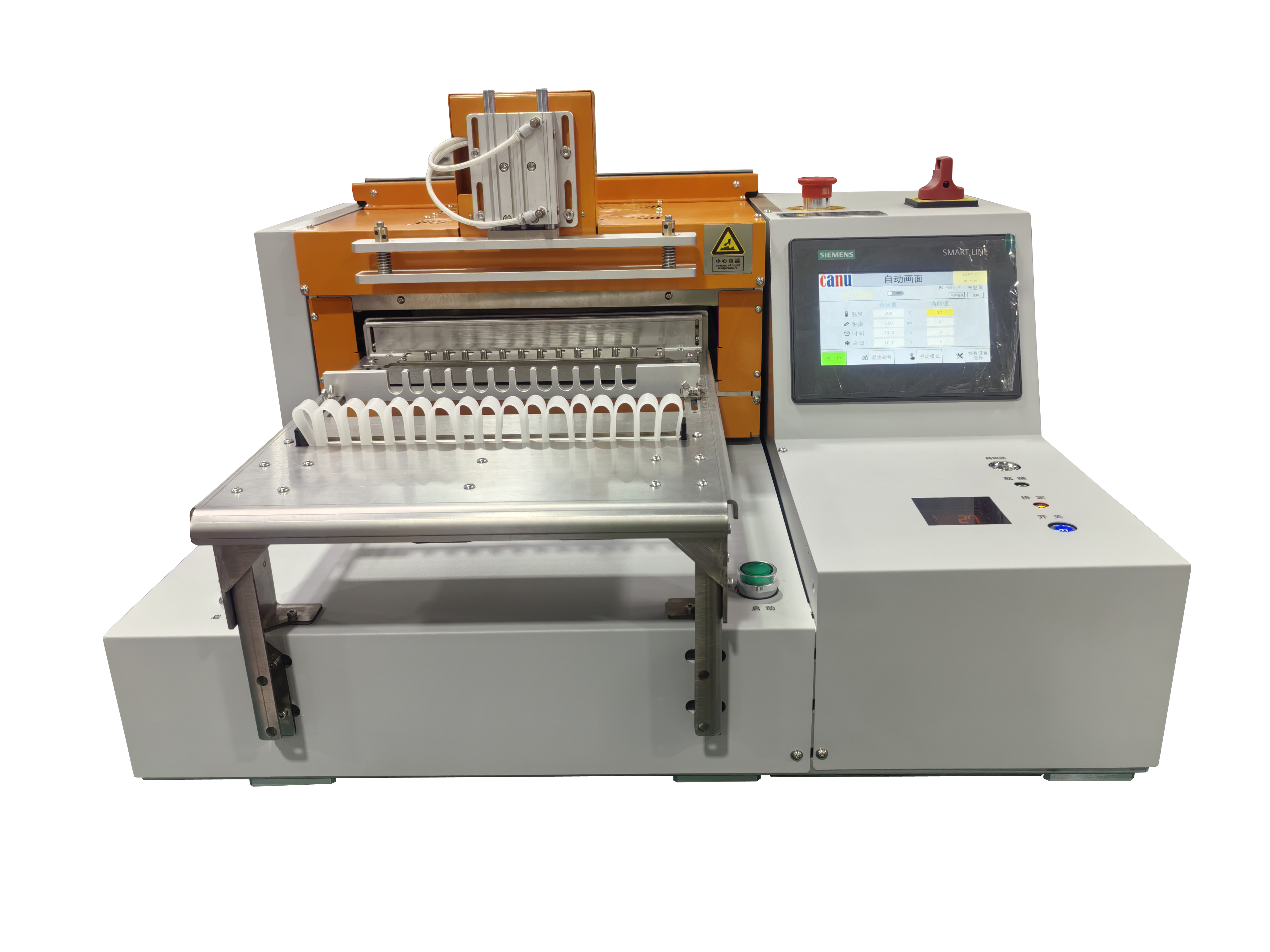

E-Heater-I-C
The product applies to the heat shrinking of annular terminal, end connector and tubular terminal. The heating module of the machine moves while the wiring harness is fixed, with 5-10 wire harnesses placed in the machine each time. The machine heats up quickly and has good thermal compensation effect. With advanced thermal infrared radiation technology (wave length 3～6um), the heat absorption is highly efficient, even and compact. The parameters can be adjusted to meet different technological requirements of shrinkable tube.
Product Specifications：
Dimension： 730*670*415mm
Input Voltage： 220V AC
Thermal Temperature： Max 620 ℃
Maximum Power： 2000W
Section Area of Harness： Max 120 mm2
Width of Heating Panel: Max 300mm
Outer Diameter of Tube： Max 35mm
Tube Length： Max 150mm
4Adjustable parameters: heated temperature, shrinking time, etc..
4The distance among the thermal infrared modules can be adjusted to fit different diameters of the harnesses.
4There is administrator function in the parameter setting panel.
4Easy operation ensures high production efficiency.
4The positioning fixture of the wires needs to be customized.
Product Features：
The machine leads to the heat-shrinking process safer and more efficient. The tube is heated and shrinked compactly and flatly.
Wide Adaptability to Wire Harness
By adjusting the height of heating module, the machine applies to wire harness of which sectional area is between 2.5 and 120 mm2, and applies to tubes of which diameter is up to 35mm.
Good Thermal Compensation Effect
The machine has sufficient power and fast thermal compensation.
Good Quality of Heating, Shrinking and Cooling
After the heating-shrinking process is completed, the glue melts evenly, the tube is cooled enough and the harnesses do not adhere to one another.
There are several ways to protect the heating module, especially when the machine crashes or when there is sudden power outage.
Data Storing and Communicating
The machine reserves network ports for communicating with MES system and realizes intelligent production. The temperature data can be stored, reviewed and exported in 14 days.
