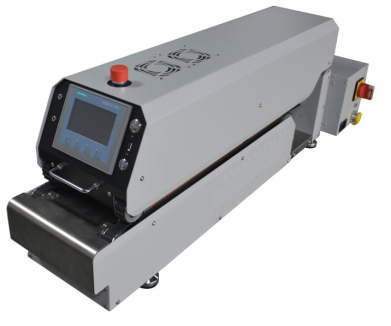

Belt Heat Shrinkage Machine Location:Home > Product Center


B-Heater-I With advanced thermal infrared radiation technology (wave length 3~6um), the heat absorption is highly efficient, evenly and compact. The parameters can be adjusted to meet different technological requirements of heating tube. The temperature i

  • Parameter
  • Video

Product Specifications:

Dimension                    1200*350*410mm

Input Voltage               110V/220V AC

Thermal Temperature:     300-600℃±1

Maximum Power          2100 W

Belt Moving Speed       0- 3M/Min

Maximum Length of  Heat Shrinkable Tube: 70mm

Maximum Diameter 0f  Heat Shrinkable Tube0- Ф25.4mm

Product Features:

       The machine makes heating-shrinking process more efficient and more safe. The tube is heated more compact and more even.

Precise Temperature

       In the scope of 300-600 degrees centigrade, the accuracy of the temperature on the heated panel is controlled at ±1 degree.

High Heating Speed:

       It takes only 150 second to raise the temperature from 25 degrees to 580 degrees centigrade.

Good Shrinking Quality :

      After the heating-shrinking process is completed,the glue melted evenly,the tube is cooled enough and the harnesses are not adhered one another.

High Production Efficiency:

       It takes only one minute to complete the heating and shrinking process of 25 pieces of harness.


       There are several ways to protect the heating module. The energy saving function is activated when the machine is in standby mode.

Communication And Storage:

       The machine supports 485, internet, and USB communication and can communicate with MES system to realize intelligent production. The temperature data can be stored and be output in 14 days.


4The temperature increases quickly and then keeps stable.

4There is administrator function in the parameter setting panel.

4After the heating-shrinking process, the cooling effect is good, and the harnesses are not adhered one another.

4Easy operation ensures high production efficiency.

4The standby mode saves energy and makes operation more safe.
