M-Taper-I-A

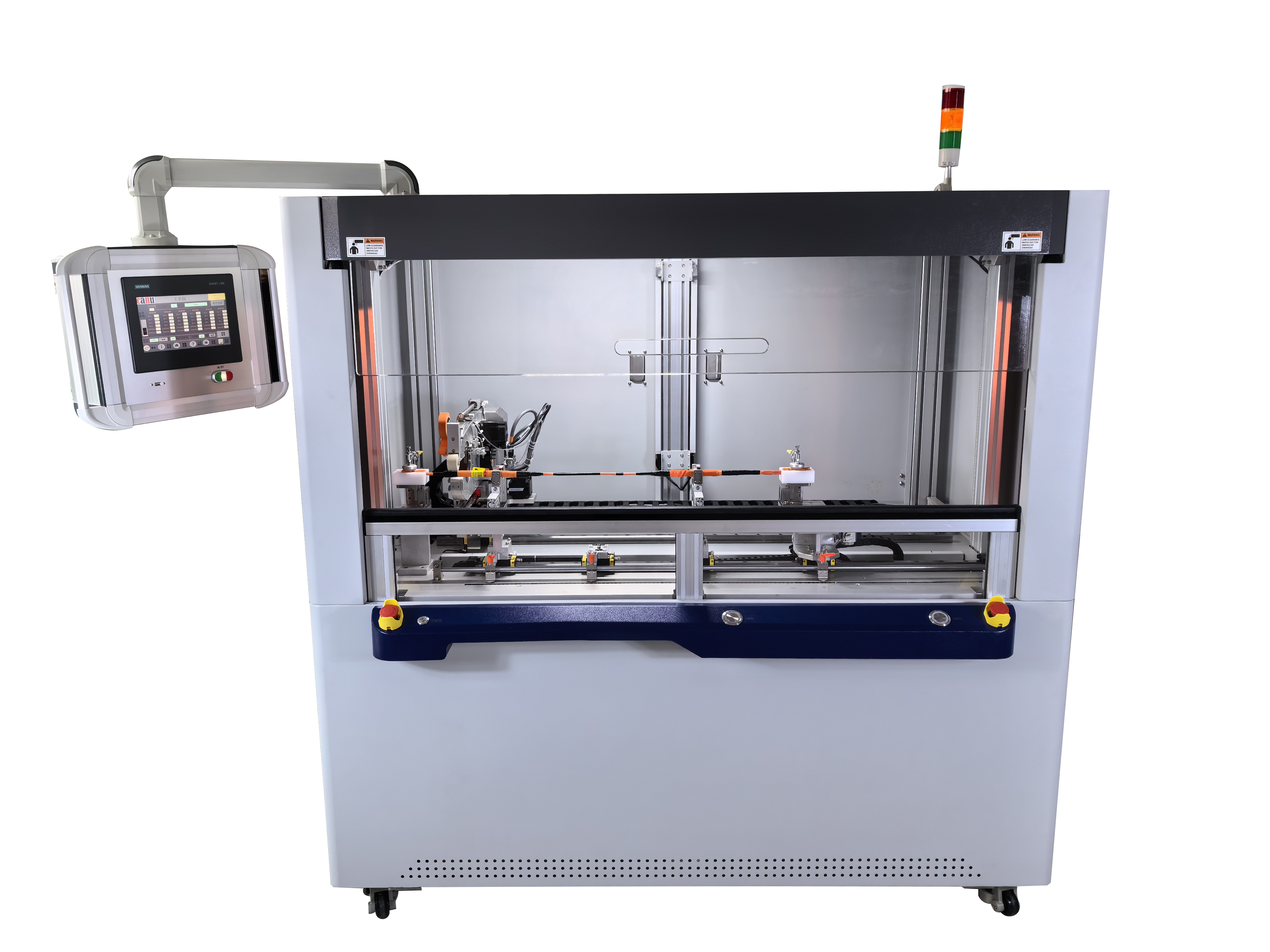

Automated taping equipment for HV products.The specially design can realize taping on the wire harness very close to the end of the wire connector, achieving perfect taping of large drop diameter wire harnesses. Taping can be done on corrugated pipe and PVC sleeves. The machine can preset complex motion trajectories, taping length, number of taping turns, and taping overlap rate through parameter settings on the display . The entire taping and cutting process is fully automatic, the only job for the operator is to put cable up and down the machine.
Product Specification:
Dimension | 1720*1050*1760 |
Power Supply | 110V/220V（AC） |
Length of Taped Wire | ≤1100mm |
Diameter of Wire | ≤25mm |
Winding Speed | ≤550 RPM |
Tape Mandrel Diameter | 76mm or 38mm |
OD Of Tape | ≤110mm |
Tape Width and Materials | 19mm or Customized PVC、Fleece、Cloth |
Product Characteristics：
4Reliable cutting , especially for cloth tape.
4The clamps can be changed quickly. Only four screws need to be disassembled and assembled.
4Special winding effect can be set.
4Parameters can be set.
Product Features：
Wrapping to the End of Wire Harness
Special design ensures that the tape can be winded to the end of the wire harness connector.
Winding on Big Drop Diameter Wire Harness
For special wire harness with big drop of diameter, the winding effect is smooth and perfect through parameters setting on the machine screen.
Parameters Setting
Parameters include the number of winding turns, winding length, winding speed, moving trajectory, taping effect and so on, which all can be set on the display screen.
Full Taping and Spot Taping Are Feasible
Fully Automatic
Automation jobs done by the device include automatic clamping, automatic winding, machine head automatic alignment, automatic cutting and so on. The only job for the equipment operator is to put wire harness on and off the machine.
