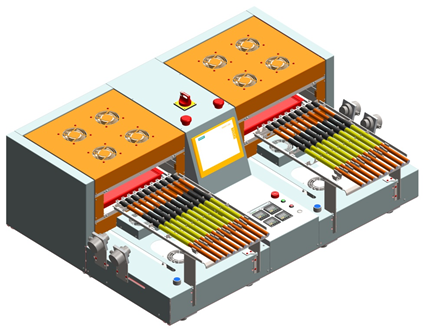

Wire End Heat Shrinkage Machine Location:Home > Product Center


The product applies to the heating and shrinking of annular terminal, end connector and tubular terminal. The wiring harness does not move. The heating module moves. Both sides of the machine can work in turn with 5-10 pieces of harness in each side. The

  • Parameter
  • Video

Product Specifications:

Dimension           1220*900*400mm

Input Voltage         380V AC

Thermal Temperature   Max600℃

Maximum Power       9000  W

Section Area of Harness Max240 square mm

Size of Heating panel:     100*300mm

Outer Diameter of Tube   Max40mm

Length of Tube:           Max 90mm

Product Features:

      The machine makes heating-shrinkingprocess more efficient and more safe. Thetube is heated more compact and more even.

Double shrinkable tubes heating:

       Two heat-shrinkable tubes on a wire harnesscan be heated simultaneously (maximum distance 220mm)

Parameters of Four sets of heating modules set  independently:

        The temperature of four heating plates can be set separately to meet the different parameters of different shrinkable tubes

High Compatibility to Wire Size

         Adjustment of the height of heating module can help the machine heat harness which section area is between 2.5-240 square mm. The maximum length of the tube is 40mm.

Good Thermal Compensation

         With high power, the machine has  good thermal compensation quickly.

Communication and Storage:

          The machine supports 485, internet, and USB communication and can communicate with MES system to realize intelligent production. The temperature data can be stored and be output in 14 days.


4Adjustable parameters: heating temperature; shrinking time, etc..

4Four pairs of heating modules can work independently.

4The distance among the thermal infrared modules can be adjusted to fit different diameters of the harnesses.

4There is administrator function in the parameter setting panel.

4Easy operation ensures high production efficiency.

4The positioning fixture of the wire needs to be customized.
