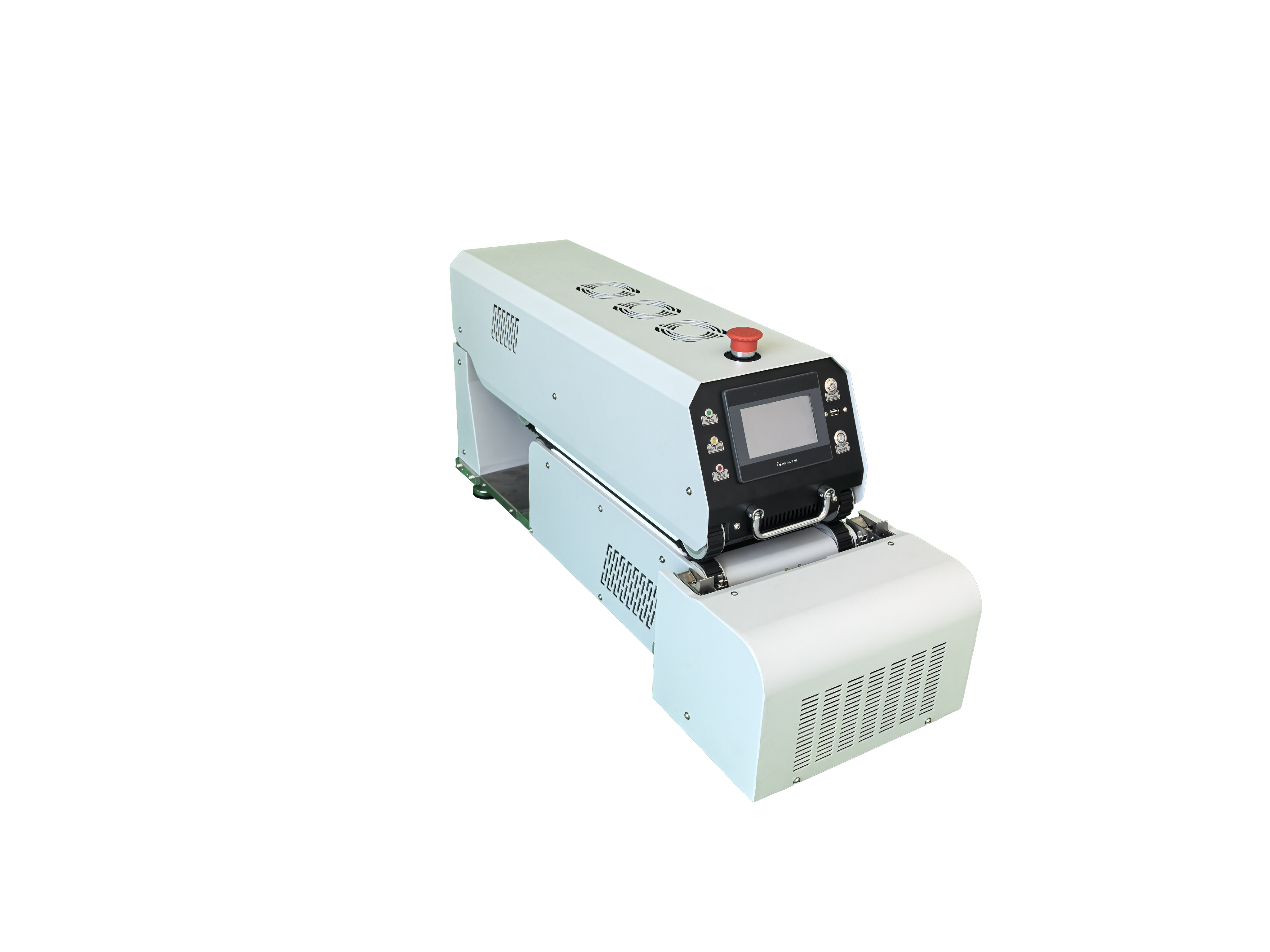

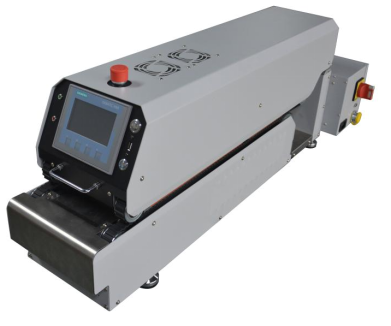

B-Heater-I-C/Centering
The machine can detect the position of the welding splice and realize the automatic centering of the heat shrinking tube. With advanced thermal infrared radiation technology (wave length 3～6um), the heat absorption of the tube is highly efficient, even and compact. The parameters can be adjusted to meet different requirements of heating tube. The temperature of the heating plate is quickly raised and then keeps stable.
Product Specifications：
Host Dimension： 855*300*420mm
Input Voltage： 220V AC
Thermal Temperature: 300-600℃±1
Maximum Power： 2100 W
Belt Moving Speed： 0- 3M/Minute
Length of splice： 5- 40 mm
Length of shrinking tube: Max70 mm
OD of shrinking tube： MaxФ15mm
OD of wire ： 0- Ф15mm
Characteristics:
4The temperature increases quickly and then keeps stable.
4There is administrator function in the parameter setting panel.
4After the heating-shrinking process, the cooling effect is good, and the harnesses do not adhere one another.
4Easy operation ensures high production efficiency.
4The standby mode saves energy and makes operation safe.
4Auto centering of tube can be realized
Product Features:
The machine leads to the heat-shrinking process safer and more efficient. The tube is heated and shrunk compactly and flatly.
Precise Temperature Centigrade
In the scope of 300-600 ℃, the accuracy of the temperature on the heated panel is controlled at ±1 ℃.
It takes only 150 seconds to raise the temperature from 25 to 580 ℃.
Good Quality of Heating, Shrinking and Cooling
After the heating-shrinking process is completed, the glue melts evenly, the tube is cooled enough and the harnesses do not adhere to one another.
High Production Efficiency
25 pieces of harness complete heating and shrinking process in one minute.
Multiple Protection
There are several ways to protect the heating module. The energy saving function is activated when the machine is in standby mode.
Data Storing and Communicating
The machine reserves network ports for communicating with MES system and realizes intelligent production. The temperature data can be stored, reviewed and exported in 14 days.
