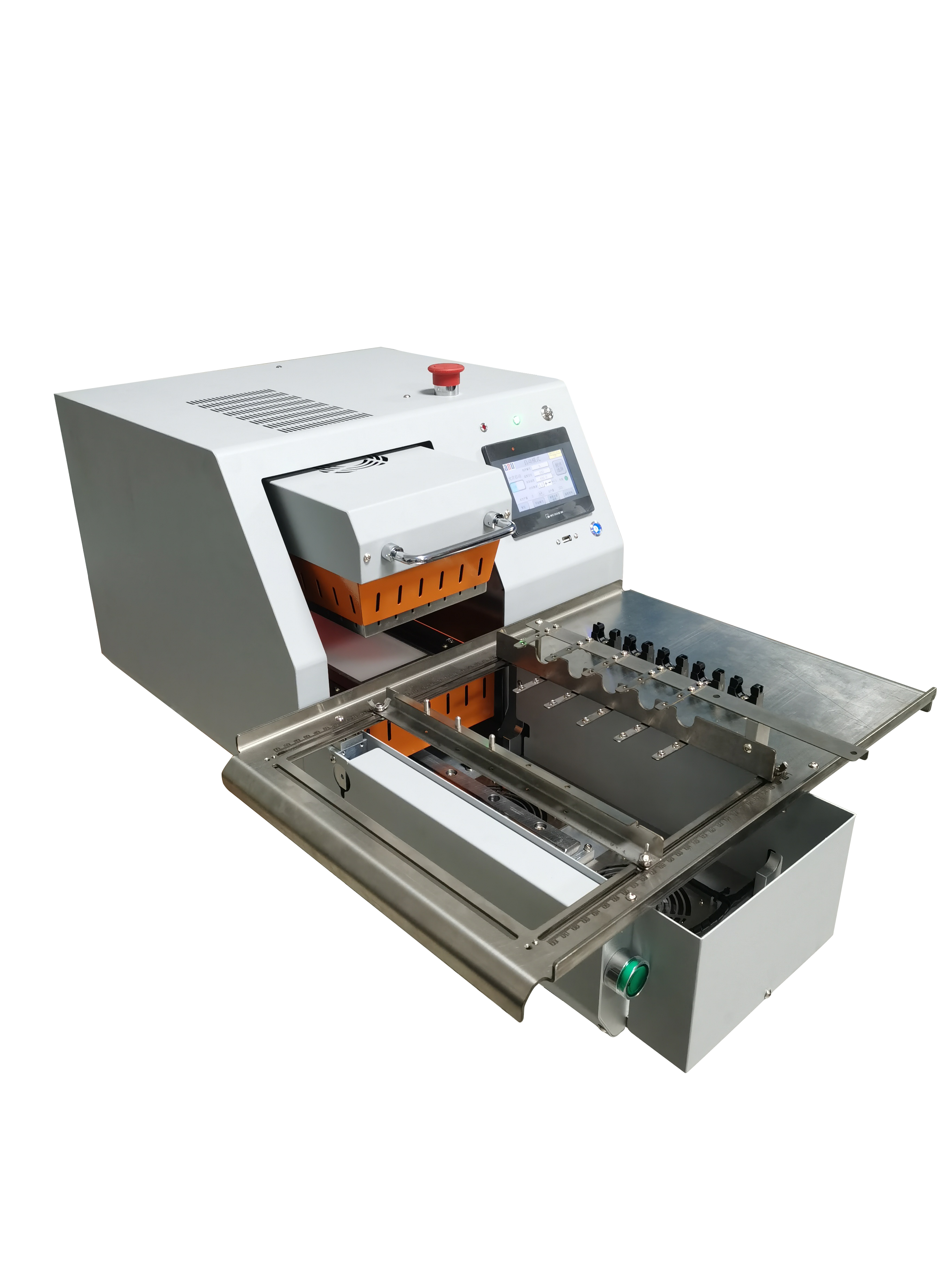

M-Heater-I-A
It is suitable for the heat shrinking process in the middle and end of the wire harness. The wiring harness does not move, the heating module can move along the Y-axis. Multiple wiring harnesses can be placed each time, which is suitable for the heating process of multiple tubes. The machine heating up fast, the heat compensation effect is good; The heat plate has high heat absorption efficiency, uniform heat shrinkable and compact, and good consistency in processing. The parameters can be adjusted to meet the technical requirements of different heat shrink tubes.
Product Specifications
Dimension: | 600*800*400mm 650*340*440mm |
Input Voltage: | 220V AC |
Thermal Temperature: | Max 620℃ |
Maximum Power: | 2000 W |
Section Area of Harness： | Max：120mm2 |
Width of Heat Shrink chamber: | 300mm |
OD of Tube: | Max Ф35mm |
Product Features
The machine leads to the heat-shrinking process safer and more efficient. The tube is heated and shrink compactly and flatly.
Multi-Wire Processed Each Time
The machine allows several wires to be processed each time, thus it significantly improves working efficiency.
High Compatibility
The machine can heat tubes at middle position of the harness, and applies to wire harness whose sectional area is between 2.5 and 240mm2,and applies to long tube whose length is less than 90mm. In addition, by setting suitable program, the equipment realizes heating at multi-position tubes on one wire and complex baking process.
Good Temperature Compensation Effect
The power of the machine is sufficient and the heat compensation is fast and even.
Data Storing and Communication
The machine reserves network ports for communicating with MES system and realizes intelligent production. The temperature data can be stored, reviewed and exported in 14 days.
Characteristics
Ø Multi-wire leads to high production efficiency.
Ø Adjustable parameters: heating plate temperature; shrinking time，cooling time, etc..
Ø Suitable for wire harnesses of different diameters and tubes of different diameters
Ø There is administrator function in the parameter setting panel.
Ø The positioning fixture of the wires needs to be customized.
Ø Can access the visual inspection system
