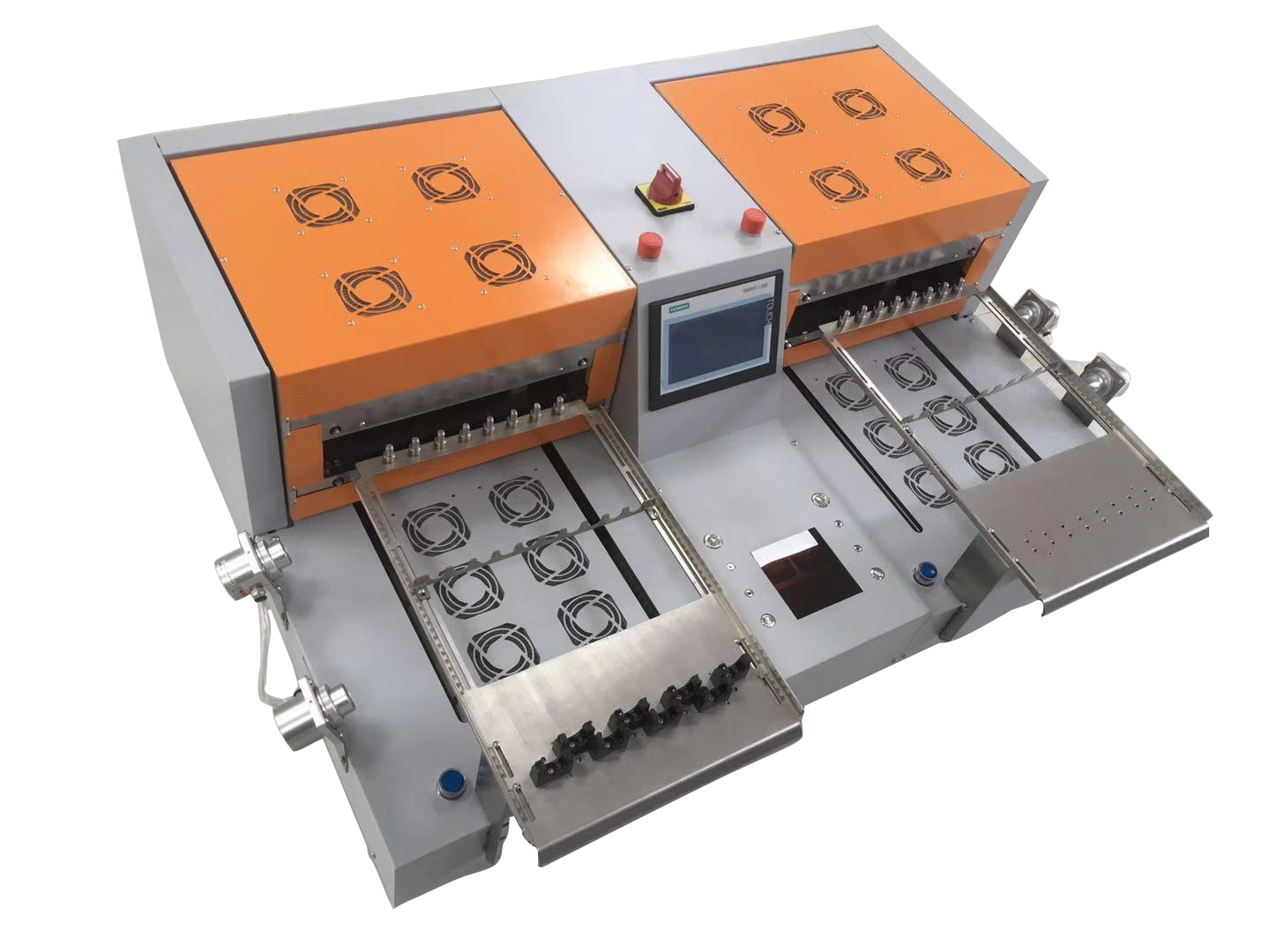

M-Heater-I-B
The heat shrinking machine applies to shrinking the tubes at middle or ending point of wire harness. The heating module moves along Y-axis and the wire harness bracket moves along the X-axis, while wire harness are fixed. Multi-wire and multi-position-tube on one wire can be processed each time. The heat absorption is highly efficient, even and compact. The parameters can be adjusted to meet different technological requirements of shrinkable tube.
Product Specifications：
Dimension： 600*820*400mm
Input Voltage： 220V AC
Thermal Temperature： Max 620℃
Maximum Power： 2000 W
Section Area of Harness： Max 120 mm2
Width of Heating Panel: Max 300mm
Outer Diameter of Tube： Max 35mm
Tube Length： Max 320 mm
The X-axis Travel Distance: Max240mm
4 Multi-wire leads to high production efficiency.
4Adjustable parameters: heating plate temperature; shrinking time，cooling time, etc..
4Suitable for wire harnesses of different diameters and tubes of different diameters
4 There is administrator function in the parameter setting panel..
4The positioning fixture of the wires needs to be customized.
4Can access the visual inspection system
Product Features：
The machine leads to the heat-shrinking process safer and more efficient. The tube is heated and shrinked compactly and flatly.
Multi-Wire Processed Each Time
The machine allows several wires to be processed each time, thus it significantly improves working efficiency.
High Compatibility
The machine can heat tubes at middle position of the harness, and applies to wire harness whose sectional area is between 2.5 and 240mm2,and applies to long tube whose length is less than 90mm. In addition, by setting suitable program, the equipment realizes heating at multi-position tubes on one wire and complex baking process.
Good Temperature Compensation Effect.
The power of the machine is sufficient and the heat compensation is fast and even.
Data Storing and Communicating
The machine reserves network ports for communicating with MES system and realizes intelligent production. The temperature data can be stored, reviewed and exported in 14 days.
