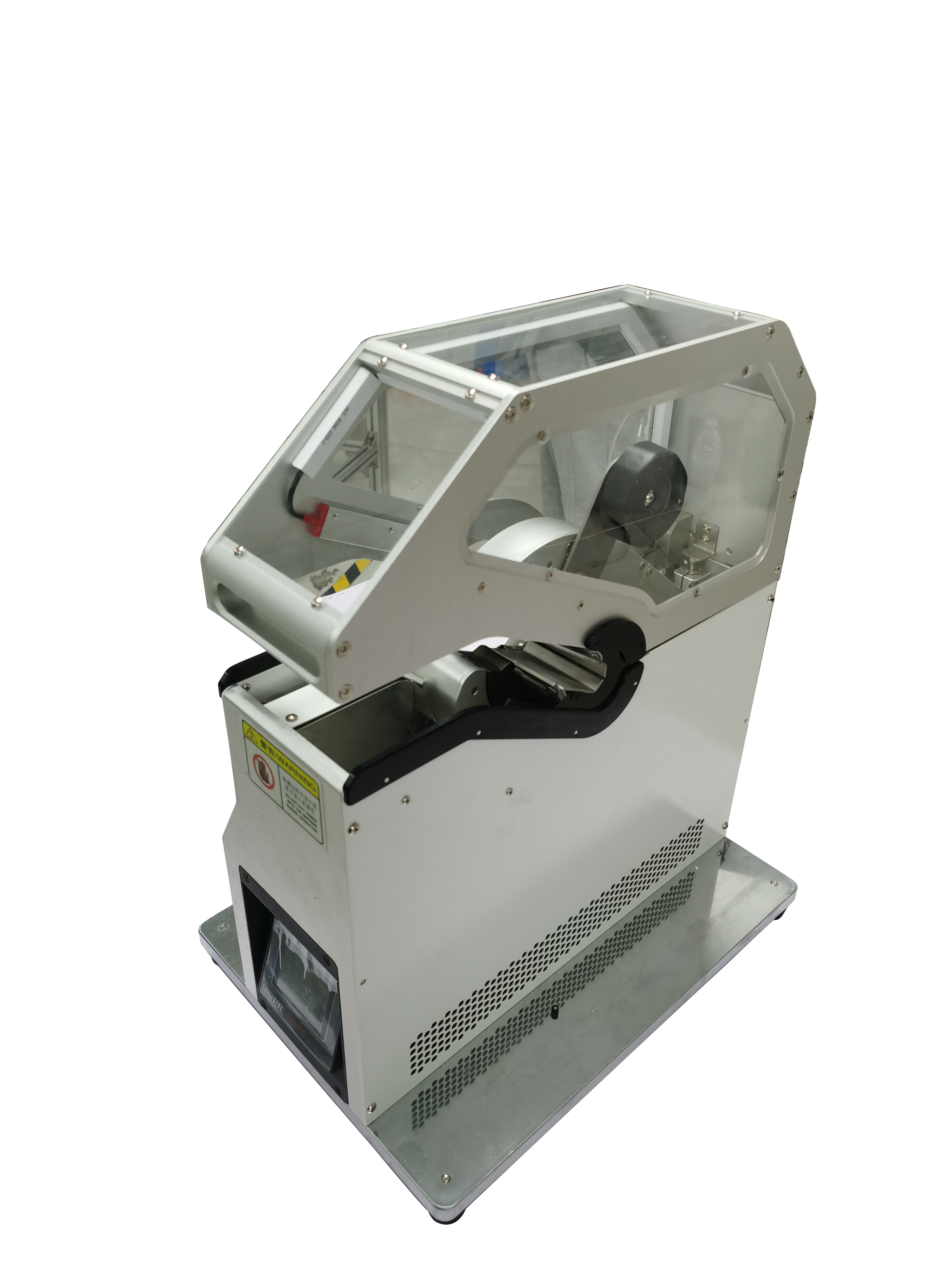

DA Taper I/II-C

A desktop taper machine, is designed to wind tapes on short, thin and branch wire harness . Special mechanism solves the wire twisting problem during the winding process. The equipment, controlled by speed pedal, significantly improves the t

  • Parameter
  • Video

Product Features

Wires Do Not Twist

Special mechanism solves the wire twisting problem during the winding process. The surface of the coating is smooth and flat. Torsion angle is less than 360 degrees per meter.

Suitable to Wind on Short WiresIt has strong adaptability for short wires taping, as long as the distance between the wrapping start point and the wire connector is more than 20mm.

Winding Length is Controllable The machine is equipped with customized scale, which can help operator control taping length on the wire harness.

Easy to MoveThe bracket is fixed by driven wheel which is easily moved.

Product Characteristics

4Wire harness can be easily wrapped at the starting point.

4The sharp cutter is reliable to cut any material tapes.

4Either continuous or interval winding can be achieved.

4It will be a desktop machine when the bracket is separated.

Product Specification:

Dimension

385*300*1060mm

Power Supply

110V/220VAC(±10%)

Length of Wire

100mm

Diameter of Wire

1-8mm

Winding Speed

280-400 RPM

Tapes Width and Materials

9-19mm width, felt, PVC, or cotton, etc.
