Product Specifications

Input Voltage：       110V/220V AC (±10%)

Working Voltage：       24V DC

Winding Speed：       280－400rpm

Tape Width：            9－25 mm

Tape Roller Diameter：≤110mm or Customized

Harness Diameter：    5－26 mm  (-C)

                                                  5－32 mm  (-B)

Tape Materials：      PVC, Cloth, Felt, etc..

Excellent Performance

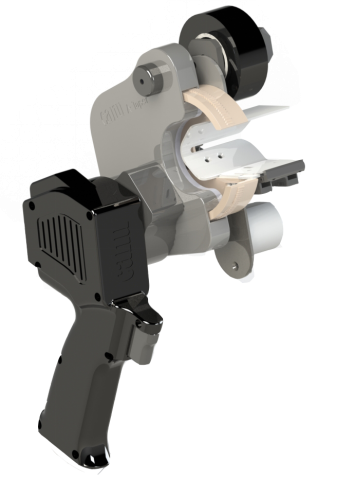

With this machine, it is easy and portable for operators to wind tapes around wire harness by pressing the starting button , achieving high efficiency and high quality.

Portability and Flexibility

With this machine, it is easy and portable for operators to wind tapes around wire harness by pressing the starting button , achieving high efficiency and high quality.

Artificial Intelligence

The ergonomic and dynamic design mitigates the operator’s fatigue in hours’ working.

The dexterous design of the winding structure permits operators to easily adjust the winding direction and speed.

4High power motor ensures the smoothness in the process of winding tapes around thick harness.

4There are high-definition LCD screen and real-time monitoring system.

4The intelligent monitoring software and the embedded system implement HMI function.

4The integrated two-way protection structure on cutter guarantees the operator’s safety.

4 The dynamic balancing mechanism measures stable winding process.

4 The sensitive braking system makes tape cutting easy.

The intelligent monitoring system displays real-time conditions of the machine; the  user-friendly HMI permits operators to adjust running parameters.

In corporating the art technologies in mechanics, electronics, software, computer and automation, the machine makes harness winding process more convenient, more efficient and more intelligent.
