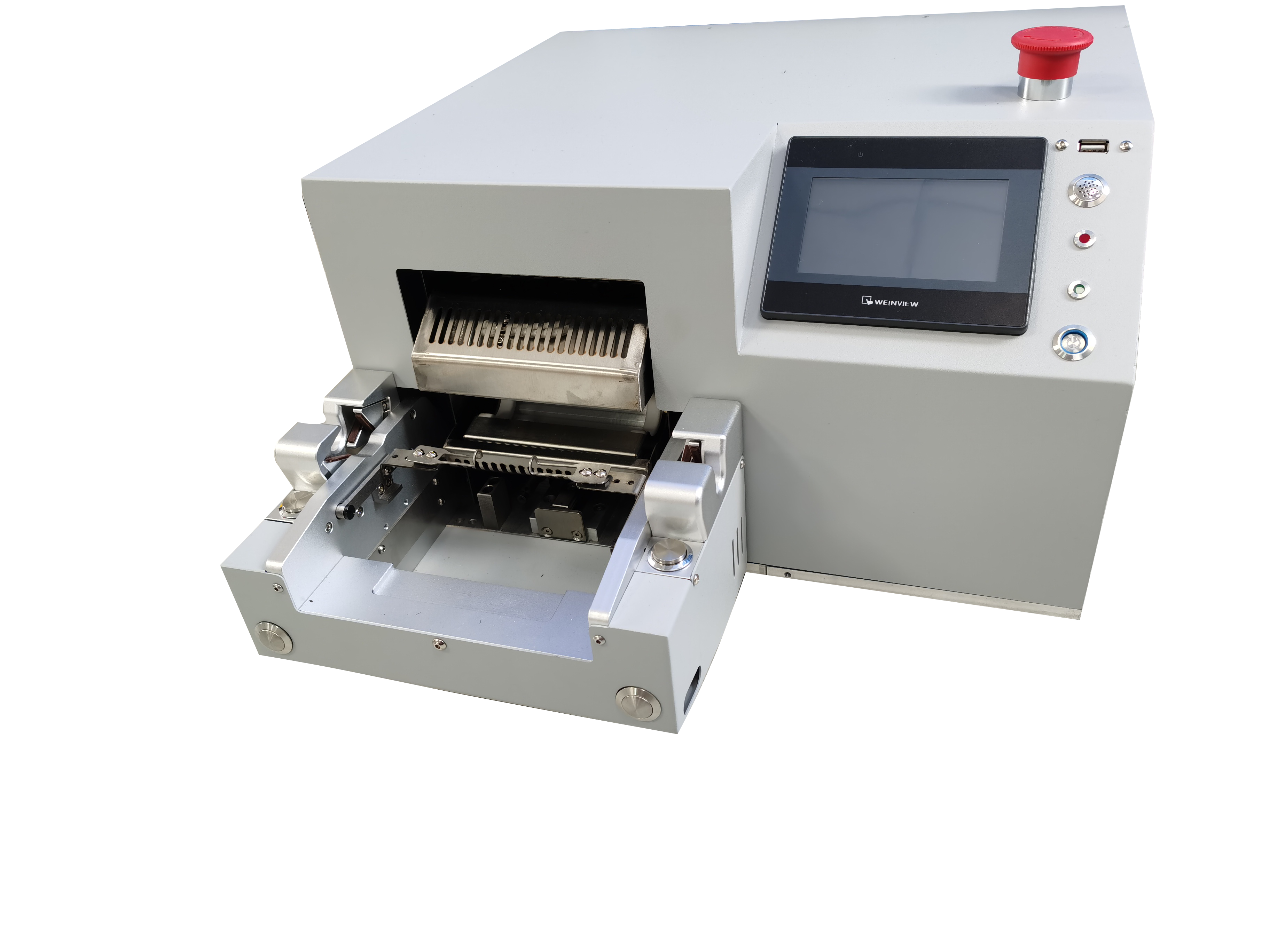

Reciprocating Heat Shrinkage Machine Location:Home > Product Center


The product is used to heat single or two-piece-of-harness; the machine can be heated at very high speed with good thermal compensation; the portable structure applies to narrow or moving working space. With advanced thermal infrared radiation technology

  • Parameter
  • Video

Product Specifications:

Dimension:          560*430*280mm

Input Voltage:        110V/220V AC

Thermal Temperature   < 650℃

Maximum Power:         600 W

Width of Heating Antrum   90mm

Diameter of Heating Antrum:  40mm

Diameter of Tube:         < 20mm

Length of Tube:           <75 mm

Product Features:

The machine makes heating-shrinking process more efficient and more safe. The tube is heated more compact and more even.

Good Thermal Compensation

With high power, the machine has a fast thermal compensation quickly.

Good Shrinking Quality

After the heating and shrinking process is completed, the glue melted evenly , the tube is cooled enough and the harnesses do  not adhere one another.


There are several ways to protect the heating module. Especially, there are protections when the machine crashes or is powered off.

Communication and Storage:

The machine supports 485, internet, and USB communication and can communicate with MES system to realize intelligent production. The temperature data can be stored and be output in 14 days.

Automatic temperature correction

After equipped with infrared temperature measuring rod, the temperature correction of heating chamber can be realized
