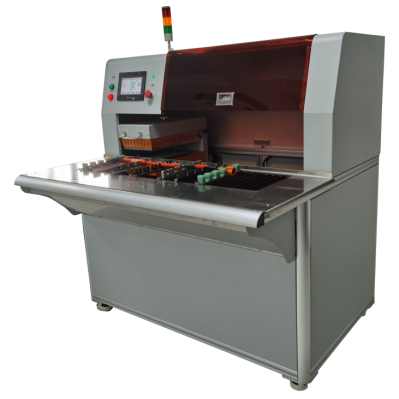

M-Heater-I-C
It is suitable for the tube shrinking process in the middle and end of the wire harness. The wiring harness does not move, the heating plate can move the X/Y axis; Multiple lines can be placed each time, which is suitable for the heating process of multi-position and multi tube. The machine heating up fast, the heat compensation effect is good; The heating plate has high heat thermal radiation efficiency, uniform heat shrinkable and compact, and good consistency in processing. The parameters can be adjusted to meet the technical requirements of different heat shrink tubes.
Product Specifications：
Dimension: | 1100*800*160mm |
Input Voltage: | 220V AC |
Thermal Temperature: | Max 650℃ |
Maximum Power: | 2000 W |
Section Area of Harness： | Max：240mm2 |
Width of Heat Shrink chamber: | 300mm |
OD of Tube: | Max Ф50mm |
Length of Tube: | Max 70/120 mm |
Maximum heat shrink distance: | 850mm |
Product Features
The machine leads to the heat-shrinking process safer and more efficient. The tube is heated and shrinked compactly and flatly.
Heating Multi-Position Tubes on Multi-wire
The heating module of the machine moves to heat multi-position tubes on multi-wire, thus significantly improves working efficiency.
High Compatibility
The machine can heat tubes at middle position of the harness, and applies to wire harness whose sectional area is between 2.5 and 240mm2,and applies to long tube whose length is less than 90mm. In addition, by setting suitable program, the equipment realizes heating multi-position tubes on one wire and complex baking process.
Good Thermal Compensation Effect
The power of the machine is sufficient and the thermal compensation is fast and even.
Characteristics
Ø Multi-position-tube on multi-wire leads to high production efficiency.
Ø Adjustable parameters: machine head moving path, heat shrinkage temperature, cooling time, etc.
Ø There is administrator function in the parameter setting panel.
Ø Suitable for wire harnesses of different diameters and tubes of different diameters
Ø The positioning fixture of the wires needs to be customized.
Ø The machine reserves network ports for communicating with MES system and realizes intelligent production. The temperature data can be stored, reviewed and exported in 14 days.
