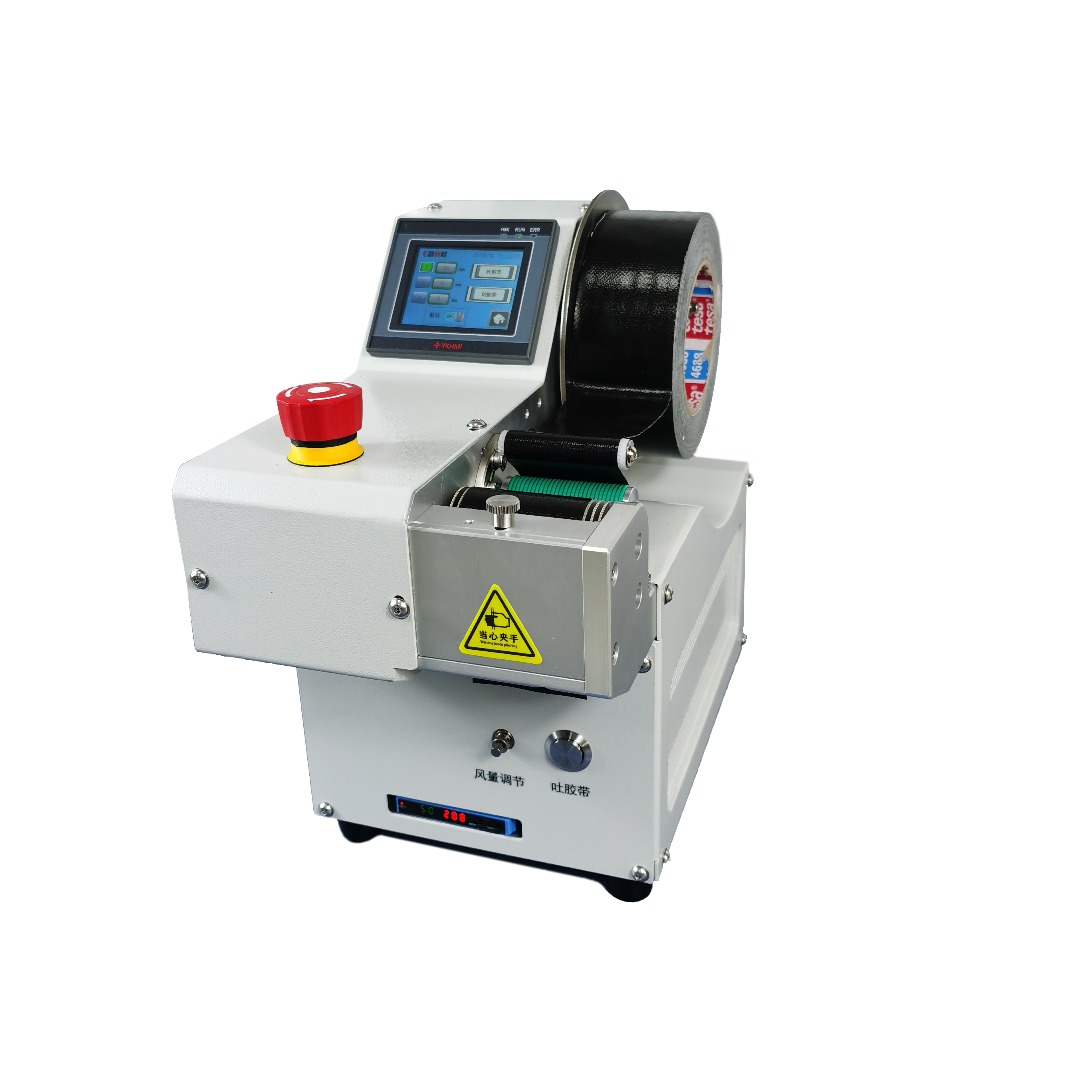

TD-Taper-II-A

The automatic tape dispenser, with adjustable cutting-length of the tape, has strong adaptability to different material of tapes. Reliable cutting mechanism ensures smoother cutting process. The blade has self-cleaning and anti-sticking function. The parameters are set on the touch screen, realizing the sequential cutting of different lengths of tape. The machine is small and easy to operate.

  • Parameter
  • Video

Product parameter:

Dimension:          180x360x300mm

Power Supply:     220V AC

Air Pressure:         0.4-0.6 MPa

Max Power:         150W

Tape Width:         19-50mm (Model I)

9-50mm  (Model II)

Tape Roller Diameter: ≤160mm or Customized

Taper Mandrel Diameter:  32-76mm

Tape Material:       PVC、Cloth, Fleece, etc.
